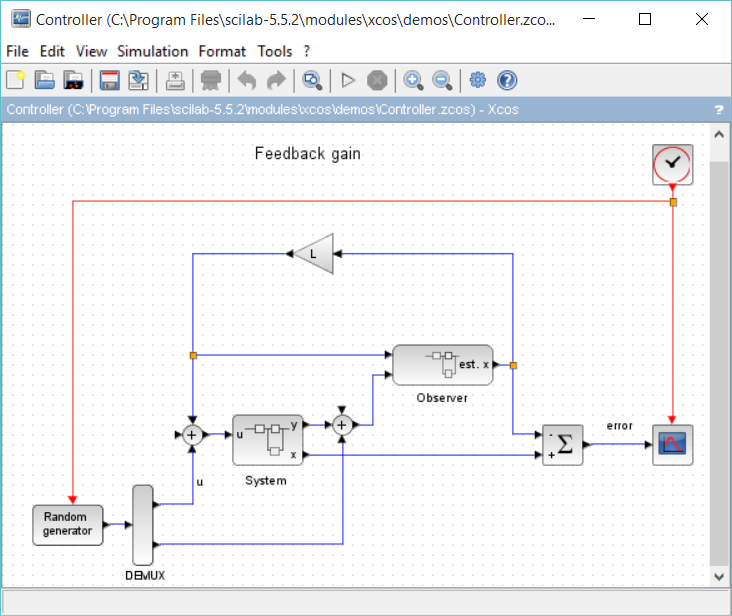

Model building & edition

  • Blocks selection from existing palettes
  • User-defined palettes
    Online Help chapter
  • Superblocks management
    (Sub-diagram embedded in a single superblock for model reuse and simplification)
  • Configurable subsystems use
  • Conditionally executed subsystems creation
  • All Scilab data types available for signal definition
