Simple code generation

This tutorial aims at presenting the new Scilab Code Generator:

https://atoms.scilab.org/toolboxes/xcos_code_generator/

More details on:

https://www.scilab.org/software/atoms/scilab-code-generator

Simple example: Gaussian filter

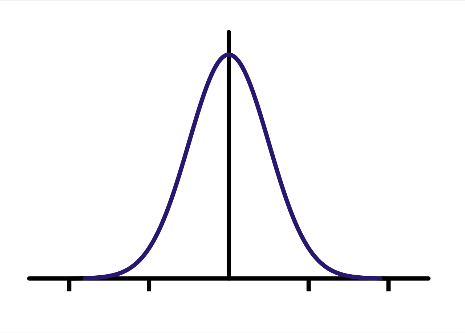

A gaussian filter s a filter whose impulse response is a Gaussian function (Wikipedia)

Let us write a simple script describing the call of a gaussian filter, on a matrix B of size 10x10.

function B=gauss_filter_3_3(A)
   x=size(A,2);
   y=size(A,1);
   B = zeros(y, x);
   for j = 2:y-1
       for i= 2:x-1
           val= 4*A(j,i)+2*(A(j,i-1)+A(j,i+1)+A(j+1,i)+A(j-1,i))+A(j+1,i+1)+A(j-1,i+1)+A(j+1,i-1)+A(j-1,i-1);
           B(j,i) = val/16;
       end
   end
endfunction

A = rand(10, 10) * 256;
B = gauss_filter_3_3(A);

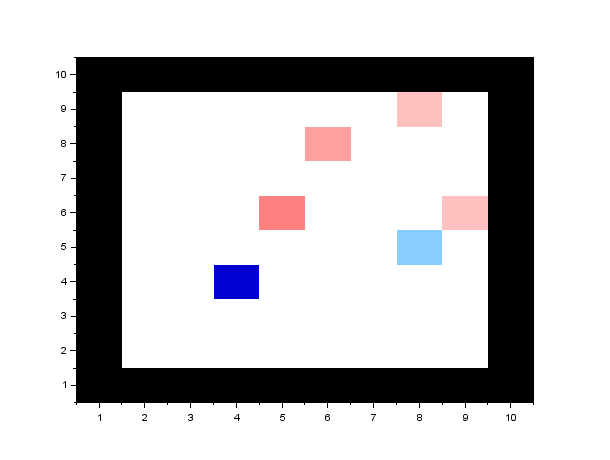

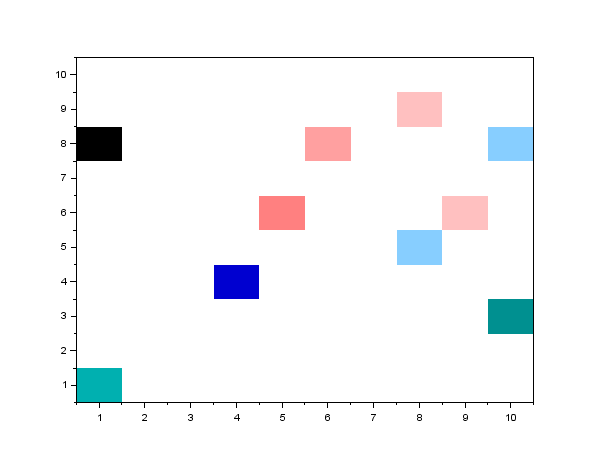

If you represent A & B with the function Matplot, you will clearly understand the impact of the Gaussian filter function:

(A is on the left, and B on the right)

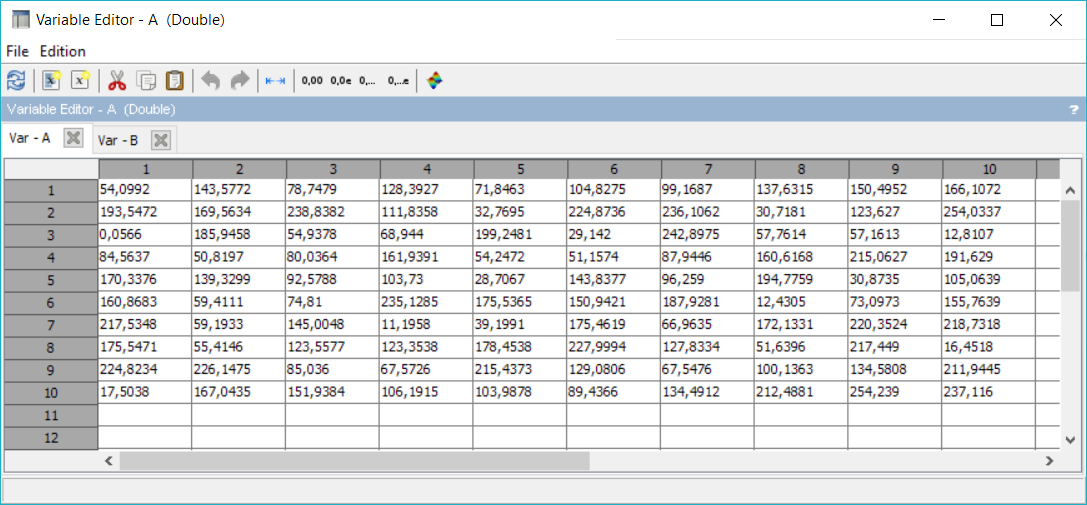

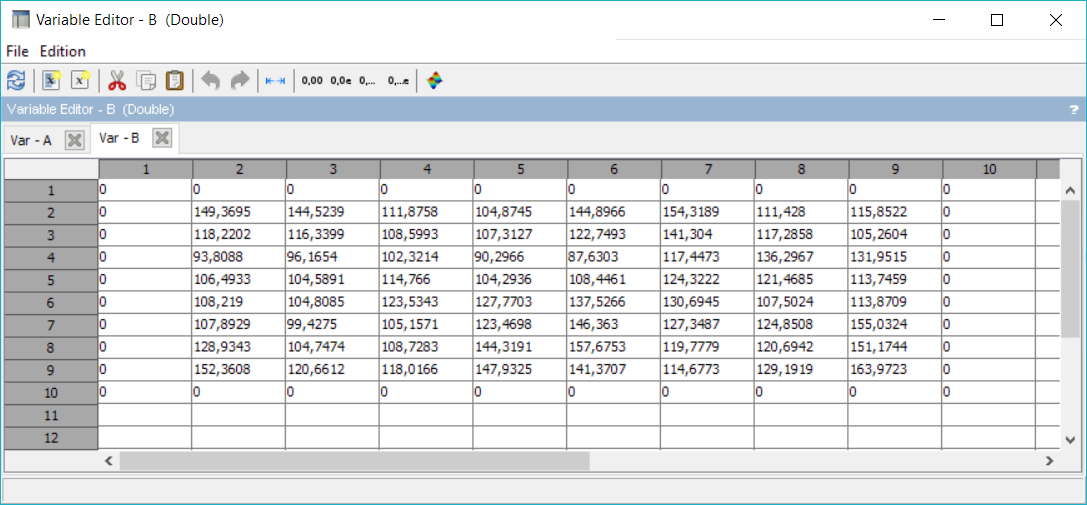

Also, you can have a look at the data in the variable editor:

First important thing to notice is that you need to clarify the calling sequences of the code you aim at generating. You cannot simply generate a function (or a .sci file). The code generator needs to know here that the gauss_filter function will be called by a matrix of double with a size 10x10.

Once the calling sequences is clarified, you can generate the code:

--> emx_codegen('gauss_filter.sce')


 Generating files in C:\Users\badmo\AppData\Local\Temp\SCI_TMP_11348_18407\build


 Using Emmtrix CodeGen latest version

emmtrix Code Generator (Oct 26 2017 01,14,08)


gauss_filter.sce(14,1-2), W00053 Warning, Variable B not used.

  B = gauss_filter_3_3(A);

  ~

Value Range Coverage, 147/147

Memory Stats, 8 stack, 0 heap, 0 global

Compile time, 160 ms


Build succeeded ... 0 error(s), 1 warning(s), 0 note(s)

Retrieving file Makefile.gen

Retrieving file emx_codegen.h

Retrieving file emx_codegen_intern.h

Retrieving file emx_codegen_rand.c

Retrieving file emx_codegen_rand.h

Retrieving file gauss_filter.c

Retrieving file gauss_filter.c.map

Retrieving file gauss_filter.d

Retrieving file gauss_filter.h

Retrieving file gauss_filter.h.map

Retrieving file gauss_filter.html

Retrieving file gauss_filter.sce

 ans  =


    []

The code generator is quite chatty. You can see that many results are returned in a folder called build by default. This is how the generated code looks like:

Display the output

If you now simply add a call to the variable B at the last line of your Scilab script and regenerate the code, you will end up with this:

// Automatically generated by emmtrix Code Generator (Oct 26 2017 01:14:08)
// Installation: /srv/www/codegen.service.emmtrix.com/install/20180209/Build/x86_64-unknown-linux-gnu-Release/../..
// Command Line Arguments: gauss_filter.sce --makefile=gnumake --report-includefiles=1
// Output Language: C99 (ISO/IEC 9899:1999)


#include <math.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>


#include "emx_codegen.h"


#include "emx_codegen_rand.h"


#include "gauss_filter.h"


void gauss_filter_3_3(double B_data[10][10], double A_data[10][10]) {
  size_t i1, i2, i3, i4;
  double val_data;

  // gauss_filter.sce(4:4-20):  B = zeros(y, x);
  #pragma EMX_KILLVAR B_data

  for (i2 = 0; i2 < 10; i2++) {
    for (i1 = 0; i1 < 10; i1++) {
      B_data[i2][i1] = 0;
    }
  }

  // gauss_filter.sce(5-10):  for j = 2:y-1

  for (i3 = 0; i3 < 8; i3++) {
    // gauss_filter.sce(6-9):  for i= 2:x-1

    for (i4 = 0; i4 < 8; i4++) {
      // gauss_filter.sce(7:12-110):  val= 4*A(j,i)+2*(A(j,i-1)+A(j,i+1)+A(j+1,i)+A(j-1,i))+A(j+1,i+1)+A(j-1,i+1)+A(j+1,i-1)+A(j-1,i-1);

      val_data = 4.0 * A_data[(int32_t )(i4) + 1][(int32_t )(i3) + 1] + 2.0 * (A_data[(int32_t )(i4)][(int32_t )(i3) + 1] + A_data[(int32_t )(i4) + 2][(int32_t )(i3) + 1] + A_data[(int32_t )(i4) + 1][(int32_t )(i3) + 2] + A_data[(int32_t )(i4) + 1][(int32_t )(i3)]) + A_data[(int32_t )(i4) + 2][(int32_t )(i3) + 2] + A_data[(int32_t )(i4) + 2][(int32_t )(i3)] + A_data[(int32_t )(i4)][(int32_t )(i3) + 2] + A_data[(int32_t )(i4)][(int32_t )(i3)];

      // gauss_filter.sce(8:12-28):  B(j,i) = val/16;
      B_data[(int32_t )(i4) + 1][(int32_t )(i3) + 1] = val_data / 16.0;
    }
  }
}


int main() {
  static double A_data[10][10], B_data[10][10];
  size_t i1, i2, i3, i4;

  // gauss_filter.sce(13:1-24):  A = rand(10, 10) * 256;
  #pragma EMX_KILLVAR A_data

  for (i2 = 0; i2 < 10; i2++) {
    for (i1 = 0; i1 < 10; i1++) {
      A_data[i2][i1] = EMX_rand_urand() * 256.0;
    }
  }

  // gauss_filter.sce(14:1-25):  B = gauss_filter_3_3(A);
  gauss_filter_3_3(B_data, A_data);

  // gauss_filter.sce(15:1-2):  B
  puts("B = ");
  for (i3 = 0; i3 < 10; i3++) {
    for (i4 = 0; i4 < 10; i4++) {
      printf(" %11.6g", B_data[i4][i3]);
    }
    puts("");
  }

  return 0;
}



Compile your code

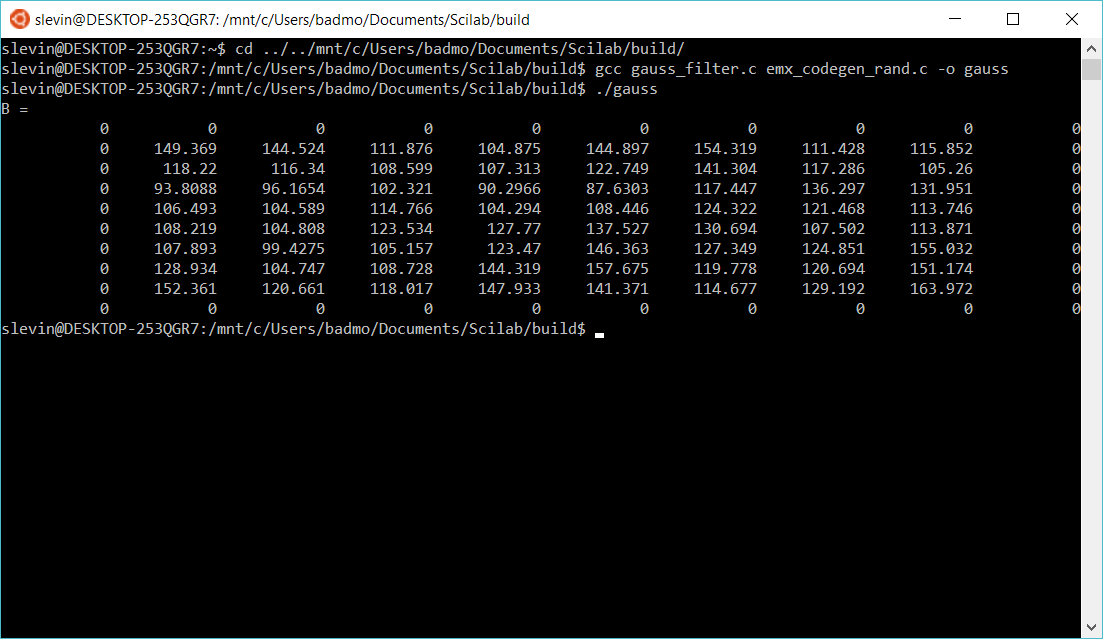

You can compile this C code, and verify that it is working well:

(Pay attention: in this example, the random function as been generated as well, and needs to be attached to the program).

You can also create a windows (64bits) executable with this command:

 x86_64-w64-mingw32-gcc -o gauss.exe gauss_filter.c emx_codegen_rand.c

Read more here:

https://stackoverflow.com/questions/38786014/how-to-compile-executable-for-windows-with-gcc-with-linux-subsystem
