Design of Experiments and optimization of aircraft design

In the frame of a collaborative project with Dassault Aviation, Scilab Enterprises developed an advanced modeling and optimization platform (Scilab Optimisation Platform) integrating features in data analysis and Design of Experiment (DoE), and covering the following functional fields:

  • Data management
  • Modeling
  • Optimization


Data management

  • Load and generate existing DOE (iSight,…) : possibility to add its own DOE generator
  • Response simulation using external tools (openFOAM, CATIA, CCM+,…) or Scilab functions

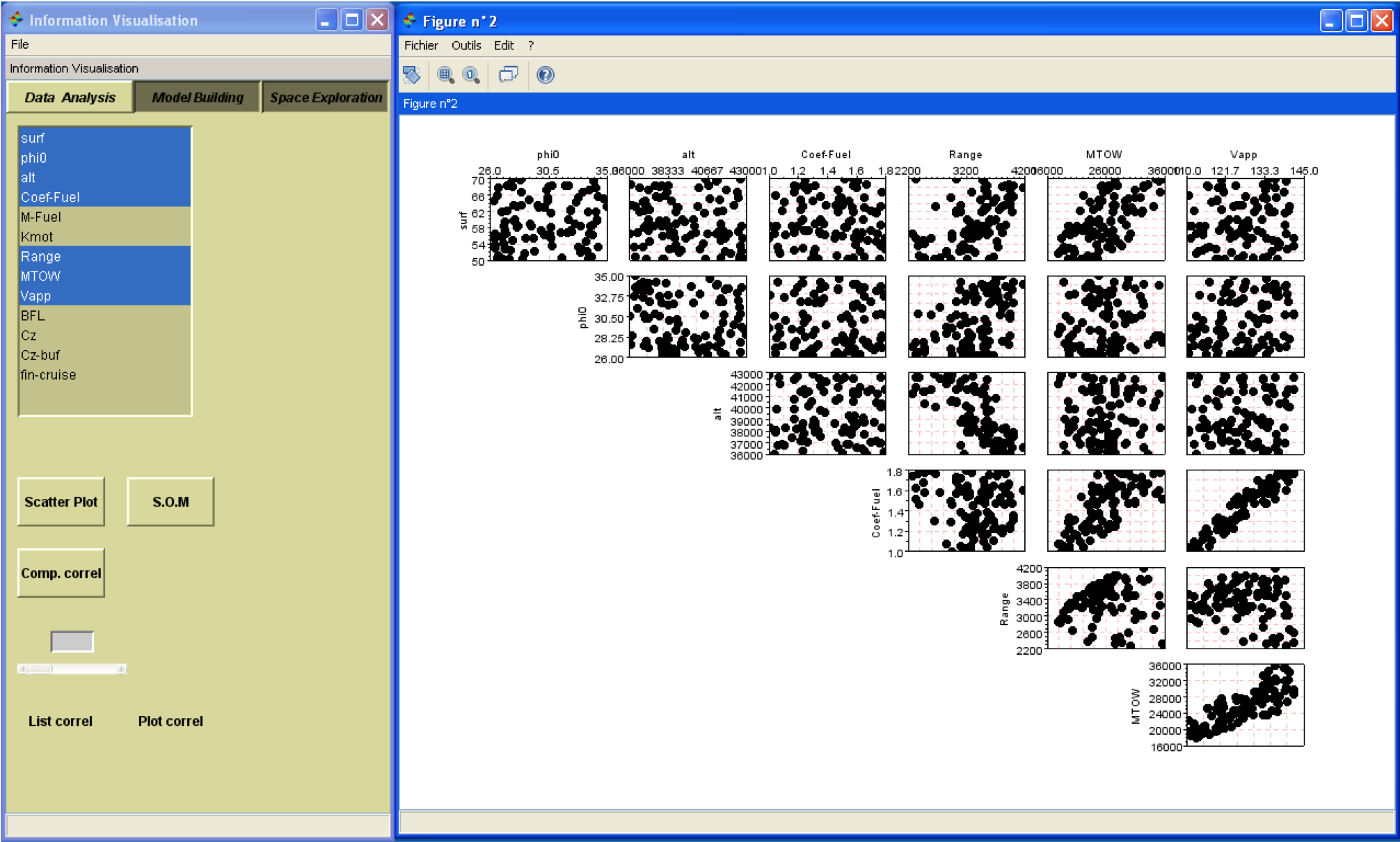

  • 2D visualization of factors and responses



Selection among various modelers: DACE (Kriging), LOLIMOT (LOcal LInear Model Tree, a fast neural network) ,

Parameter configuration

Multiple model management with best model selection

Possibility to select points:

  • Learning point
  • Validation points
  • Bad points (simulation issues,…)


Visualisation and optimisation

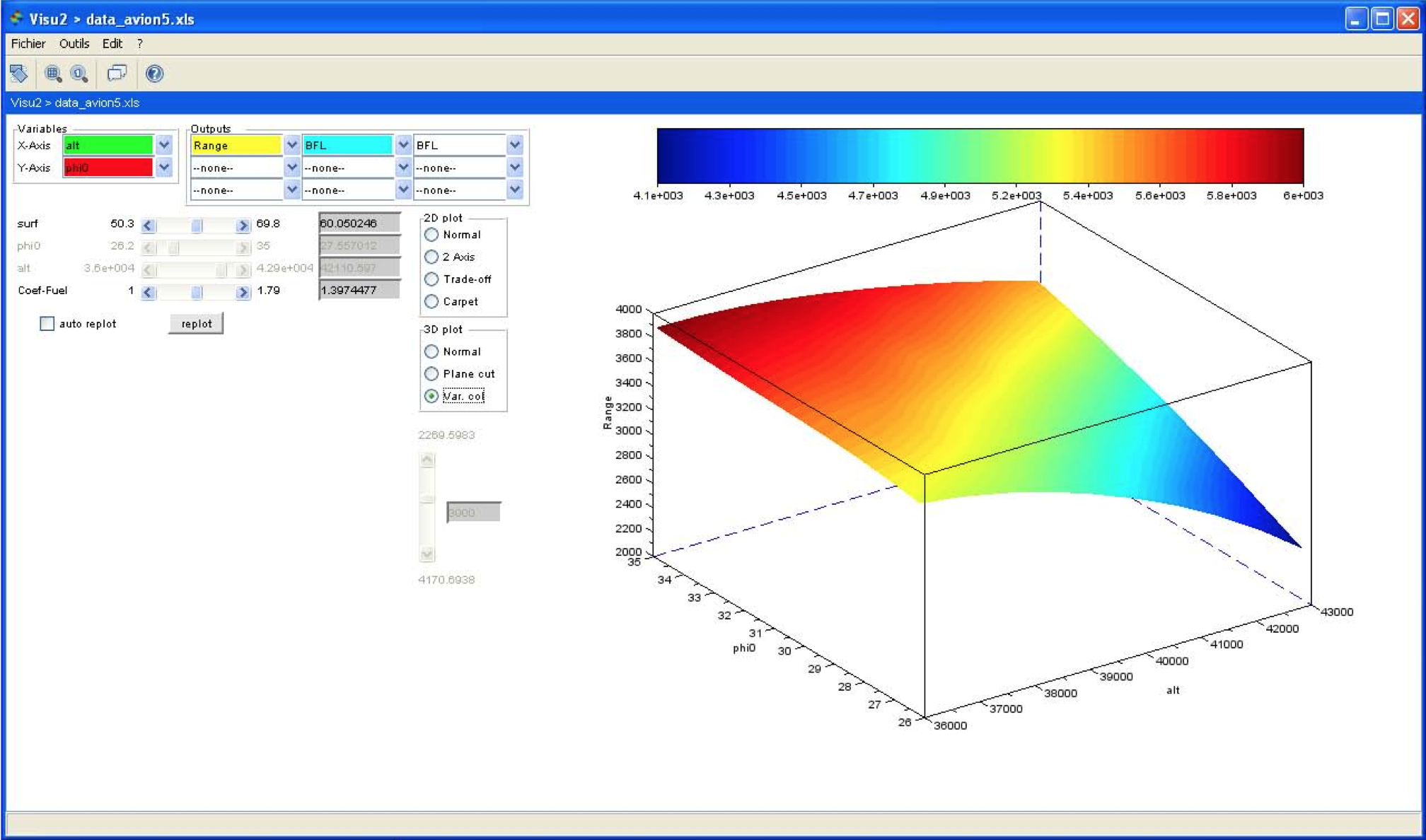

Execution and 2D visualization:

  • Response: all factors, two factors
  • Correlation

Responses coefficients setting


  • Selection between various algorithms: non-linear (with optim), constraint (with fmincon), genetic algorithms (with optim_nsga2),…
  • Possibility to add its own algorithm
  • Interactive configuration


  • Optimal point
  • Pareto frontier
  • Robustness
